SPECIFICATIONS

Brand Name: Aoft Technology

For Vehicle Type: Airplanes

Hign-concerned Chemical: None

Is Batteries Included: No

Is Electric: Other Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Plastic

Model Number: Optical Fiber

Origin: Mainland China

Quantity: 1 pcs

Recommend Age: 14+y

Use: Vehicles & Remote Control Toys

Important Reminder

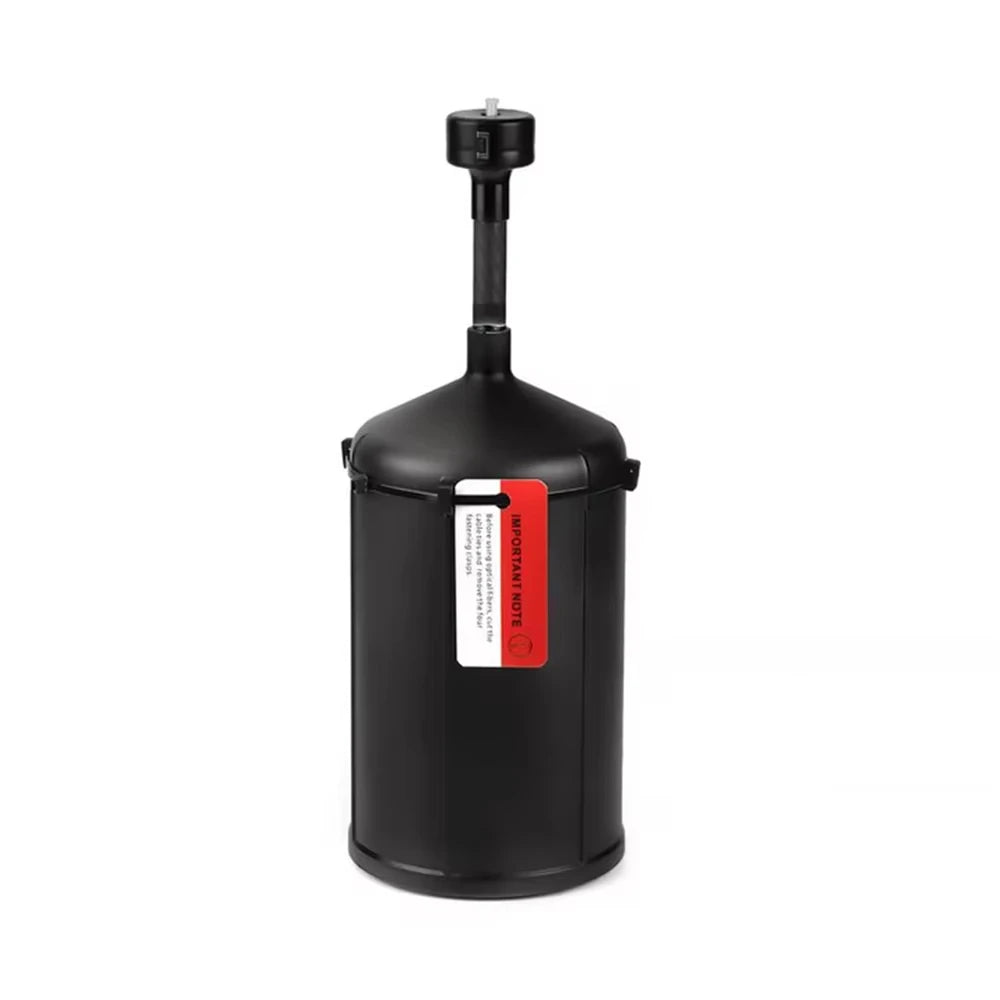

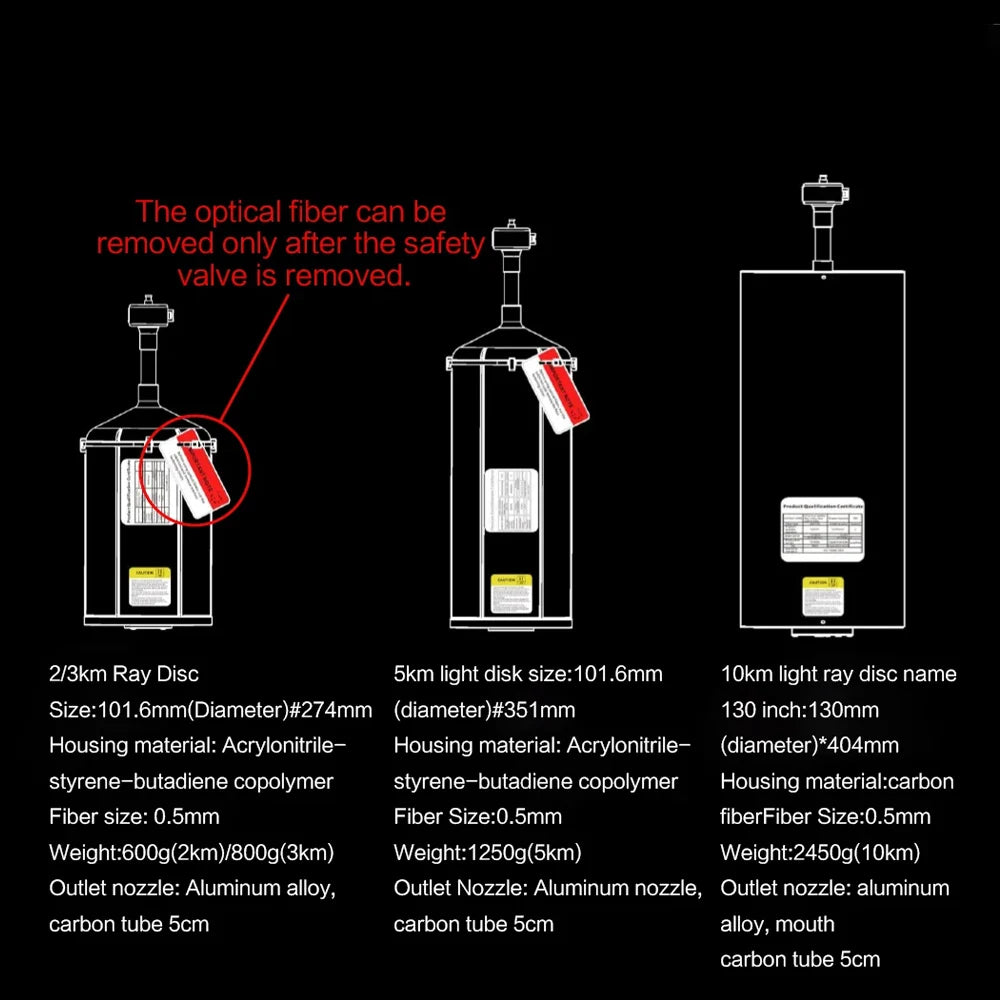

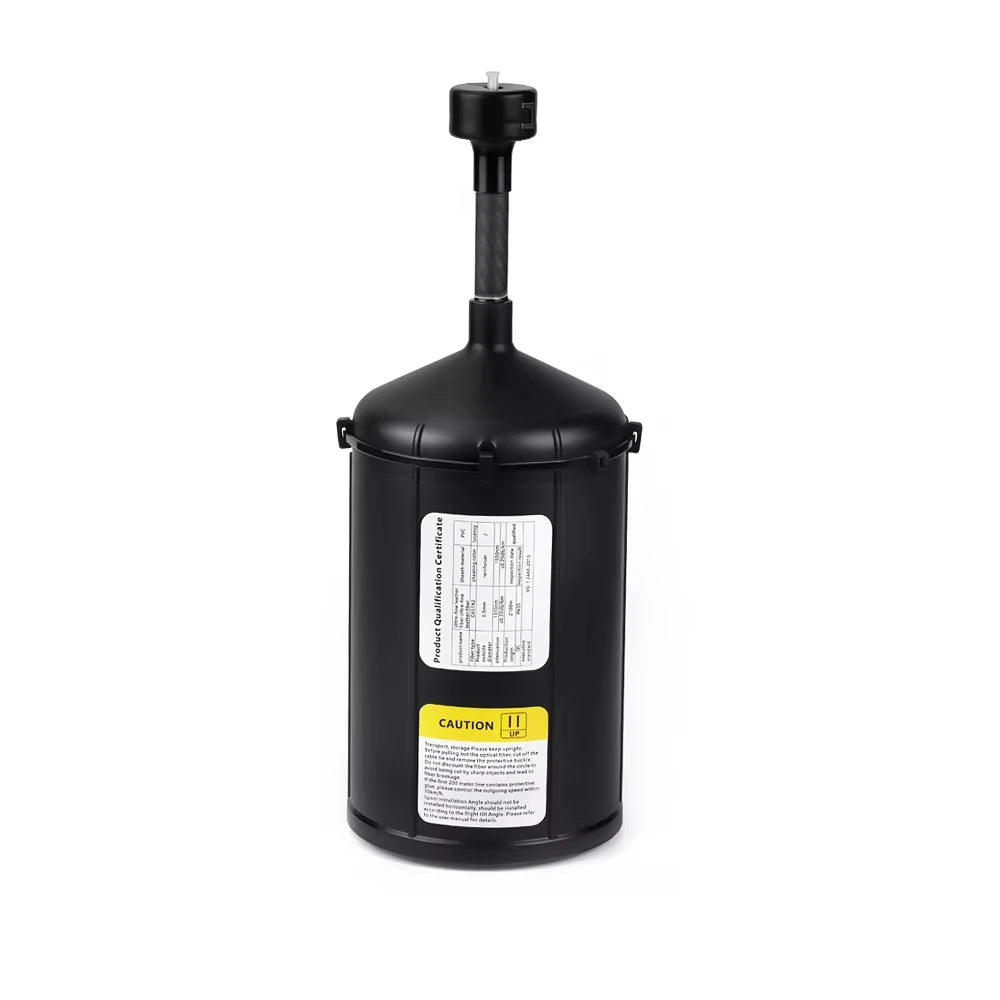

1. The installation of the fiber optic disc, the outlet of the fiber optic disc should be kept as far away from the spiral as possible

Paddle, but extra attention should be paid to the center of gravity balance point of the aircraft.

2. The installation of the fiber optic disc should be based on the inclination angle of the aircraft, and the installation bracket should

Reserve a certain inclination angle (as shown in the picture). The installation angle should be close to the inclination angle, so that

The angle of the fiber optic cable outlet is horizontal.

3. Special glue is used for fiber winding, with a distance of about 200 meters in the front

For the adhesive coating area, the flight speed of the aircraft in this area should be controlled within

Within a speed of 30km/h or 8m/s, avoid flying at high speeds in areas with adhesive

that 's ok.

4. The maximum flight speed of the aircraft should be controlled within 120km/h.

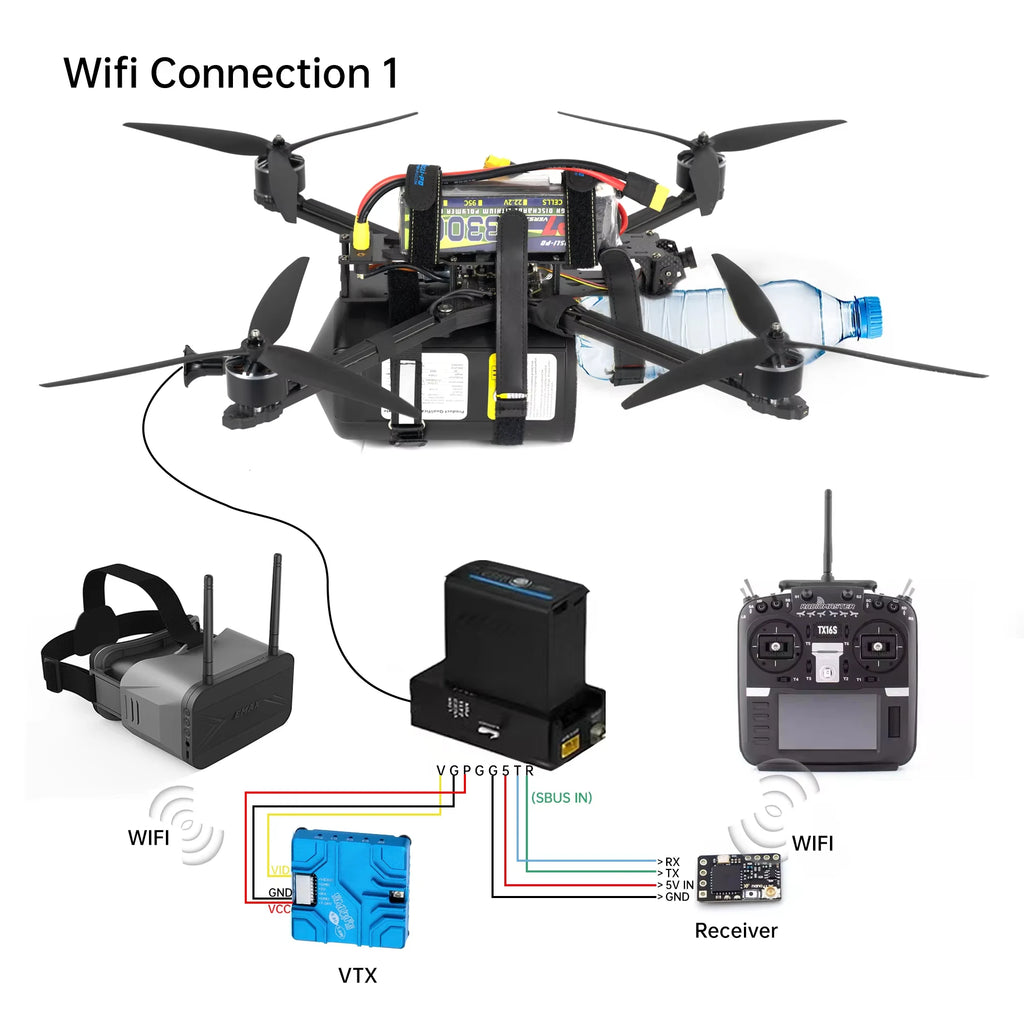

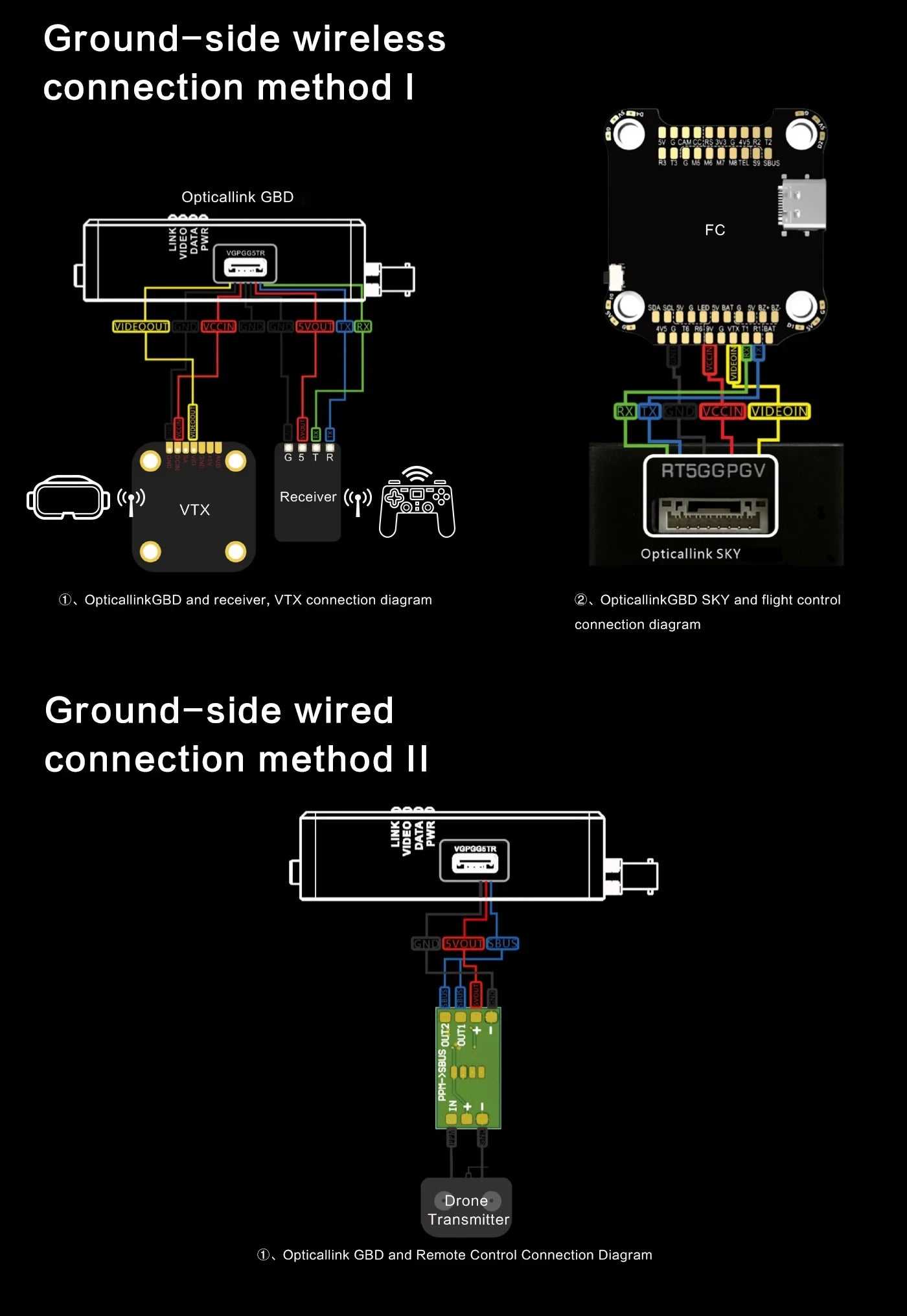

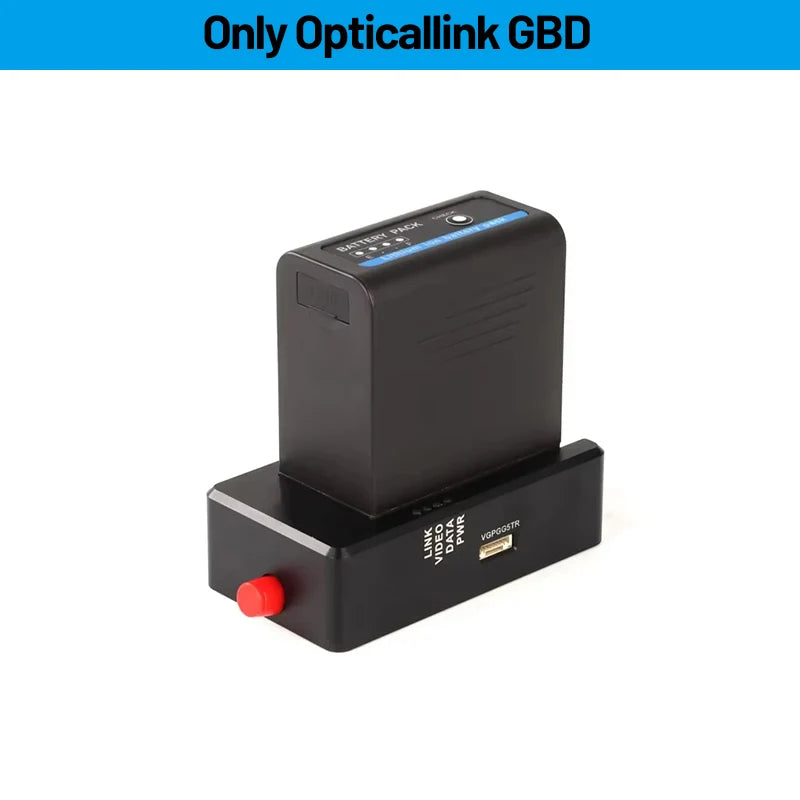

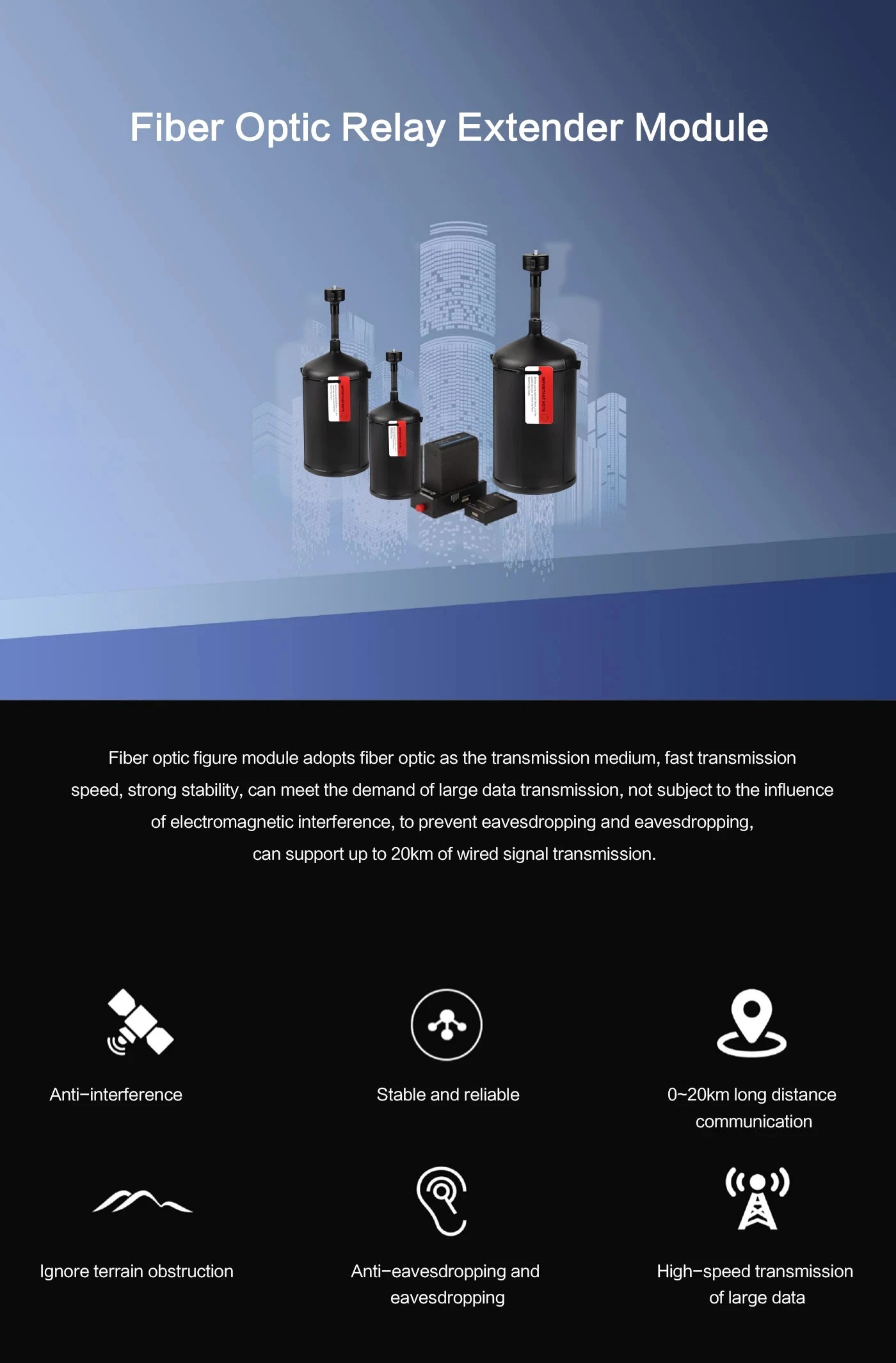

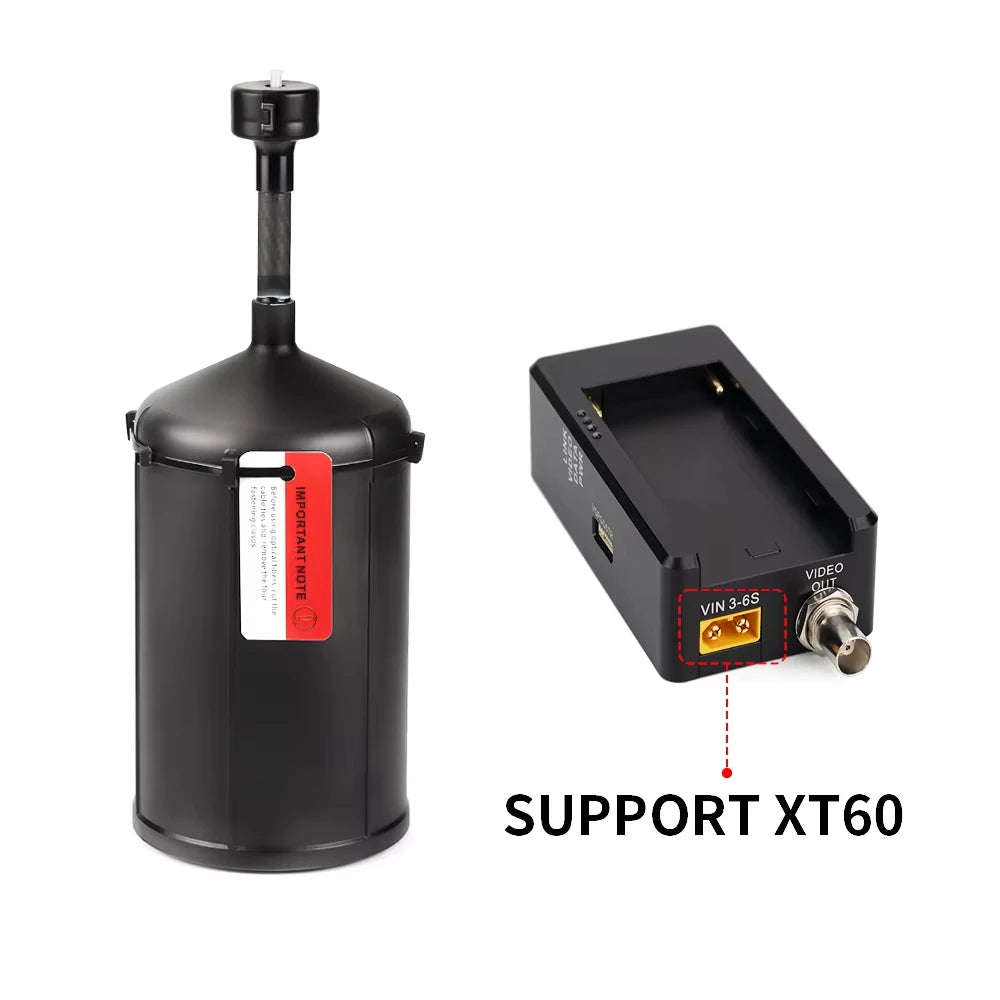

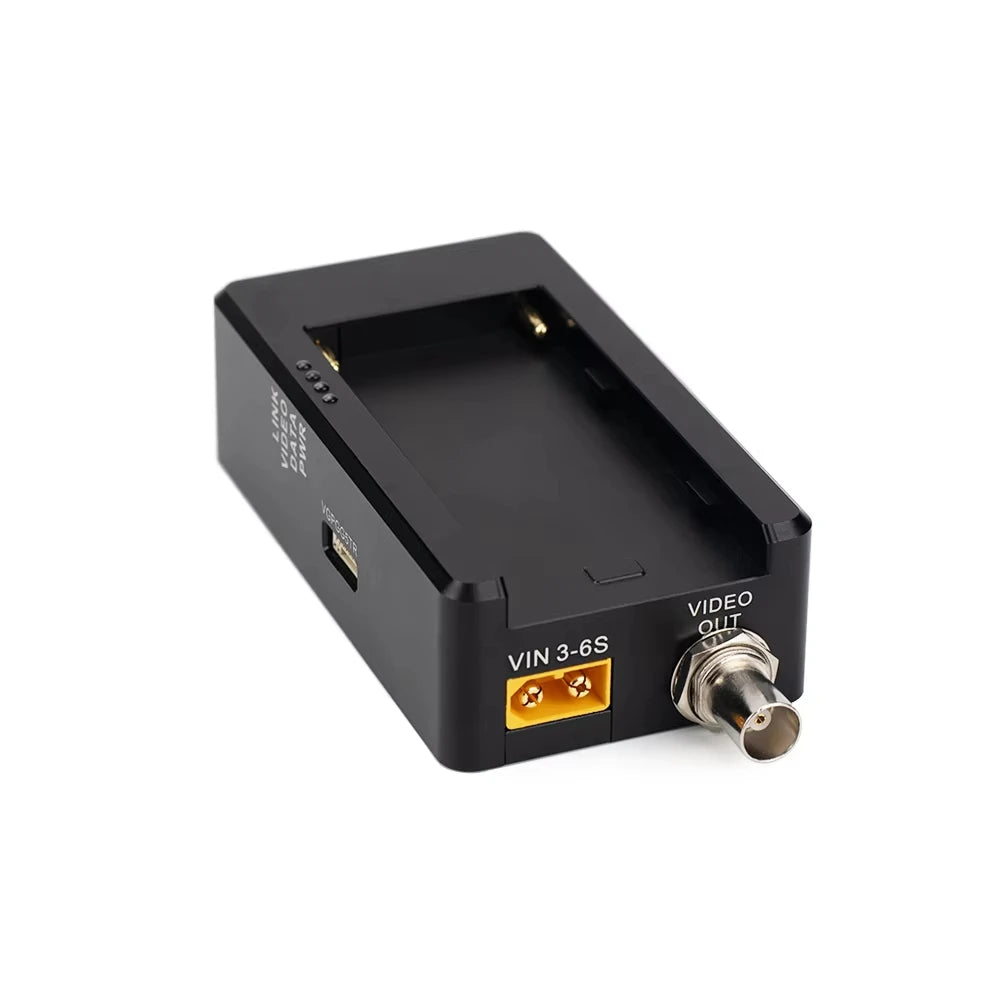

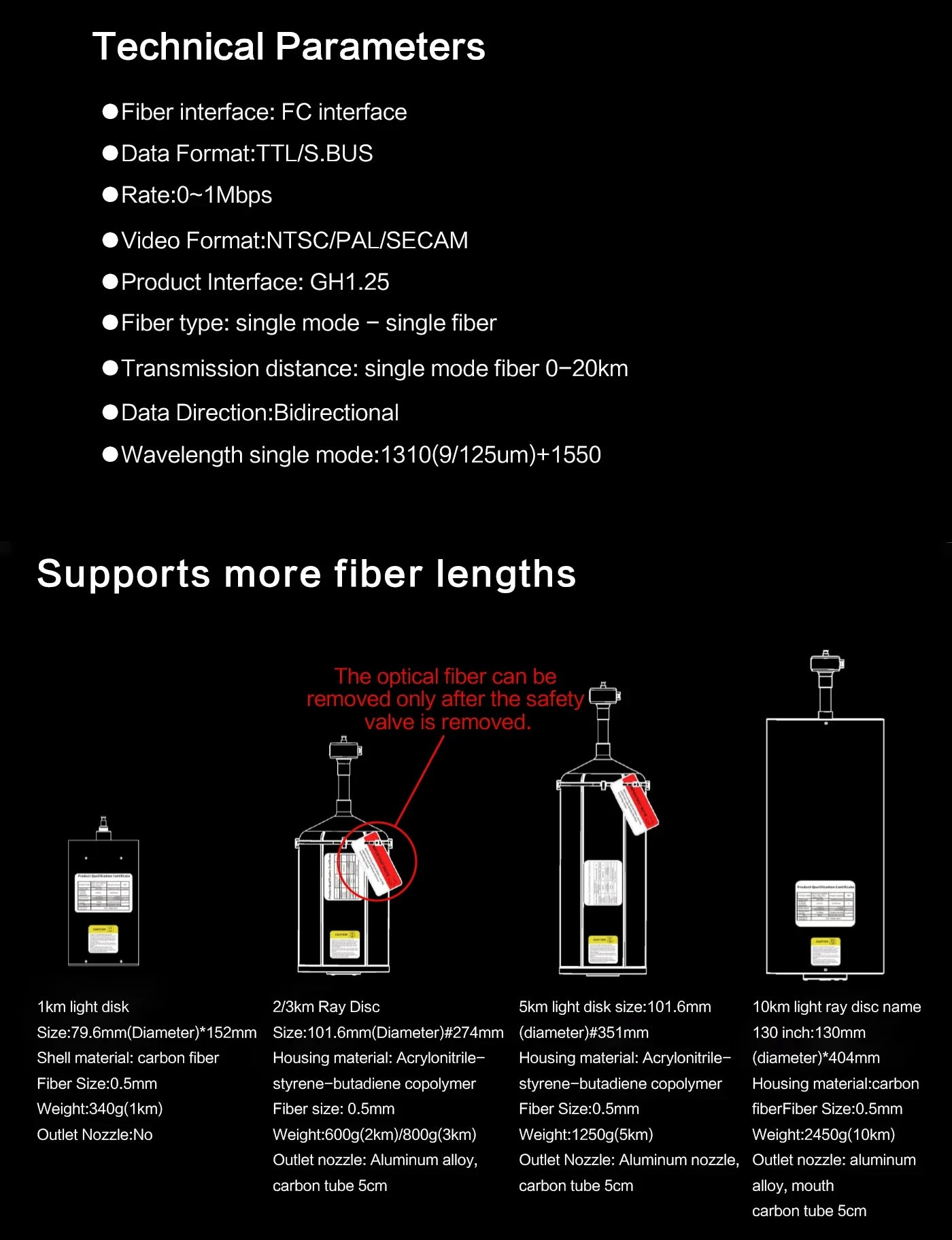

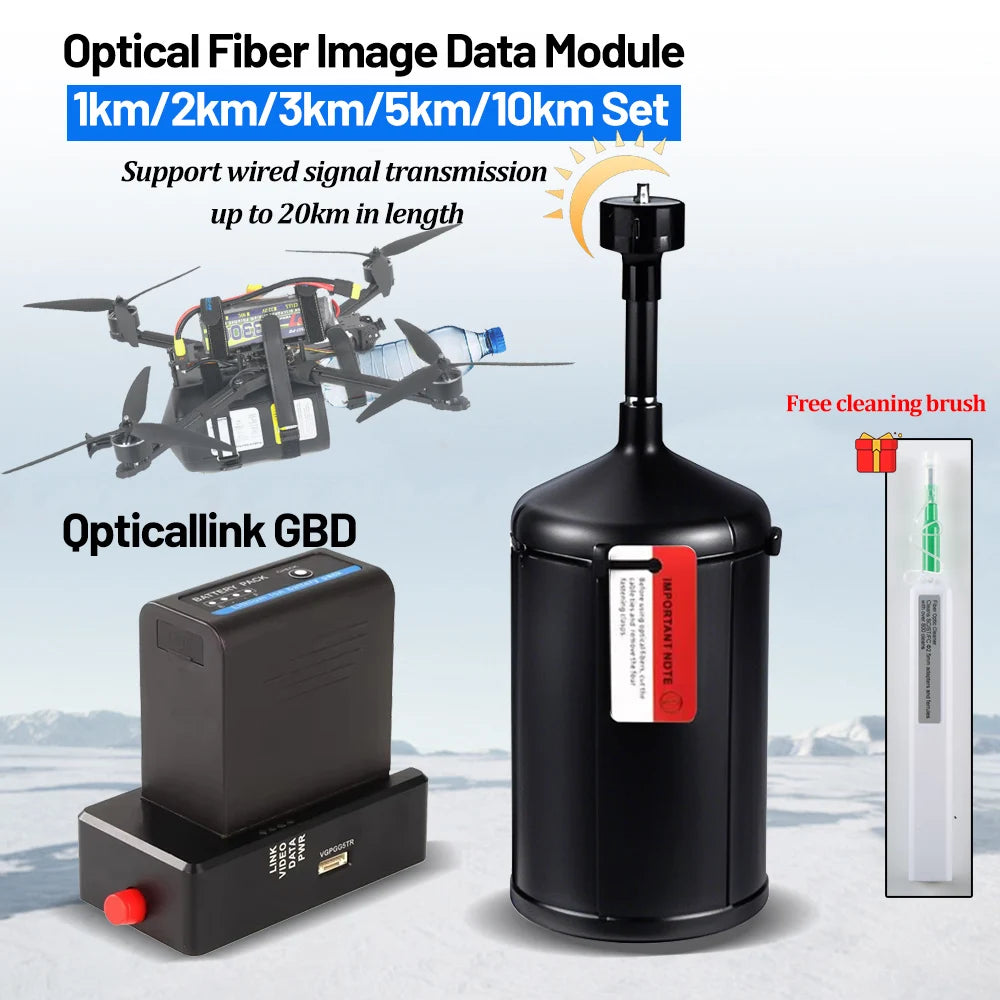

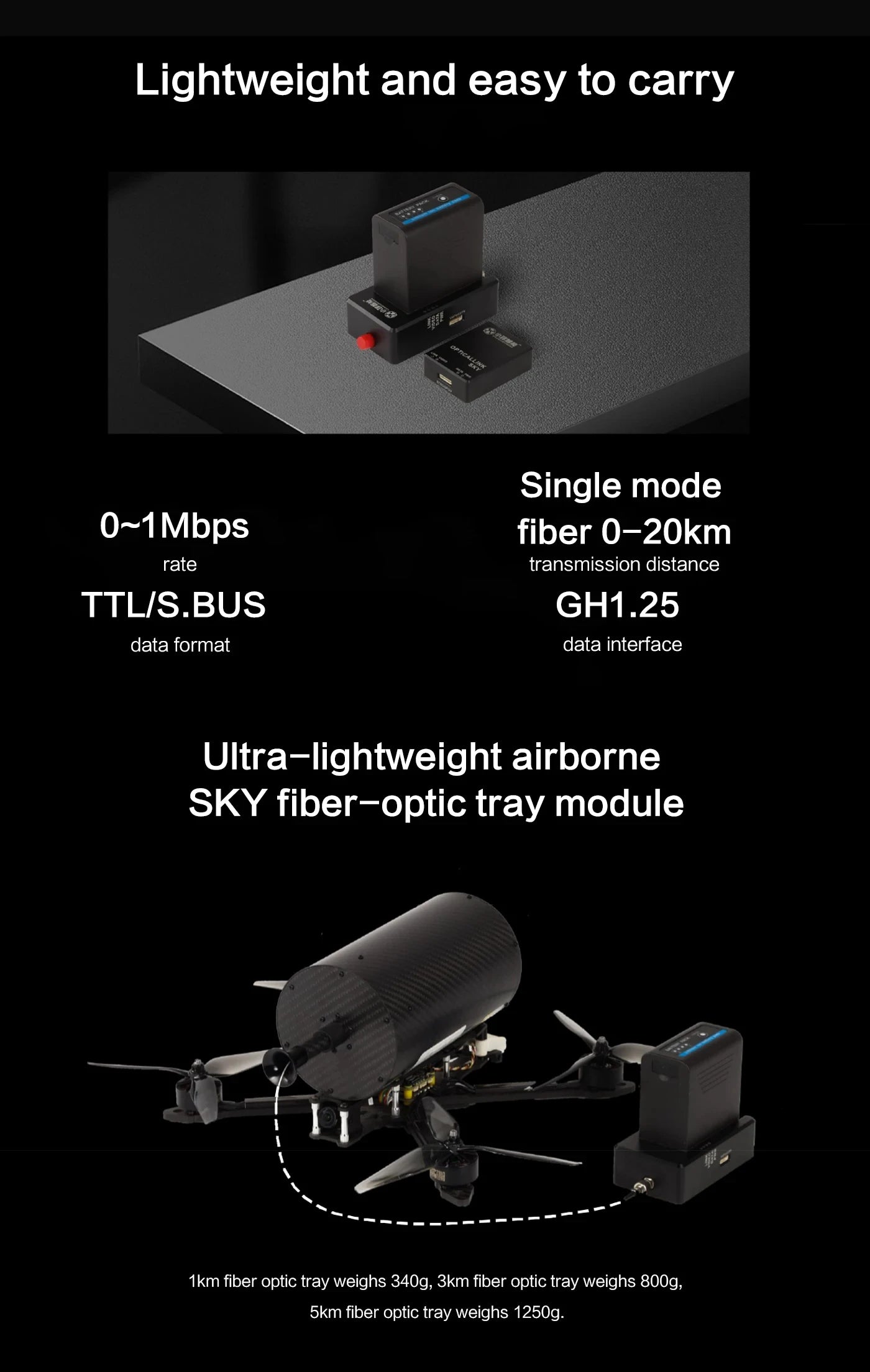

Fiber optic diagram module

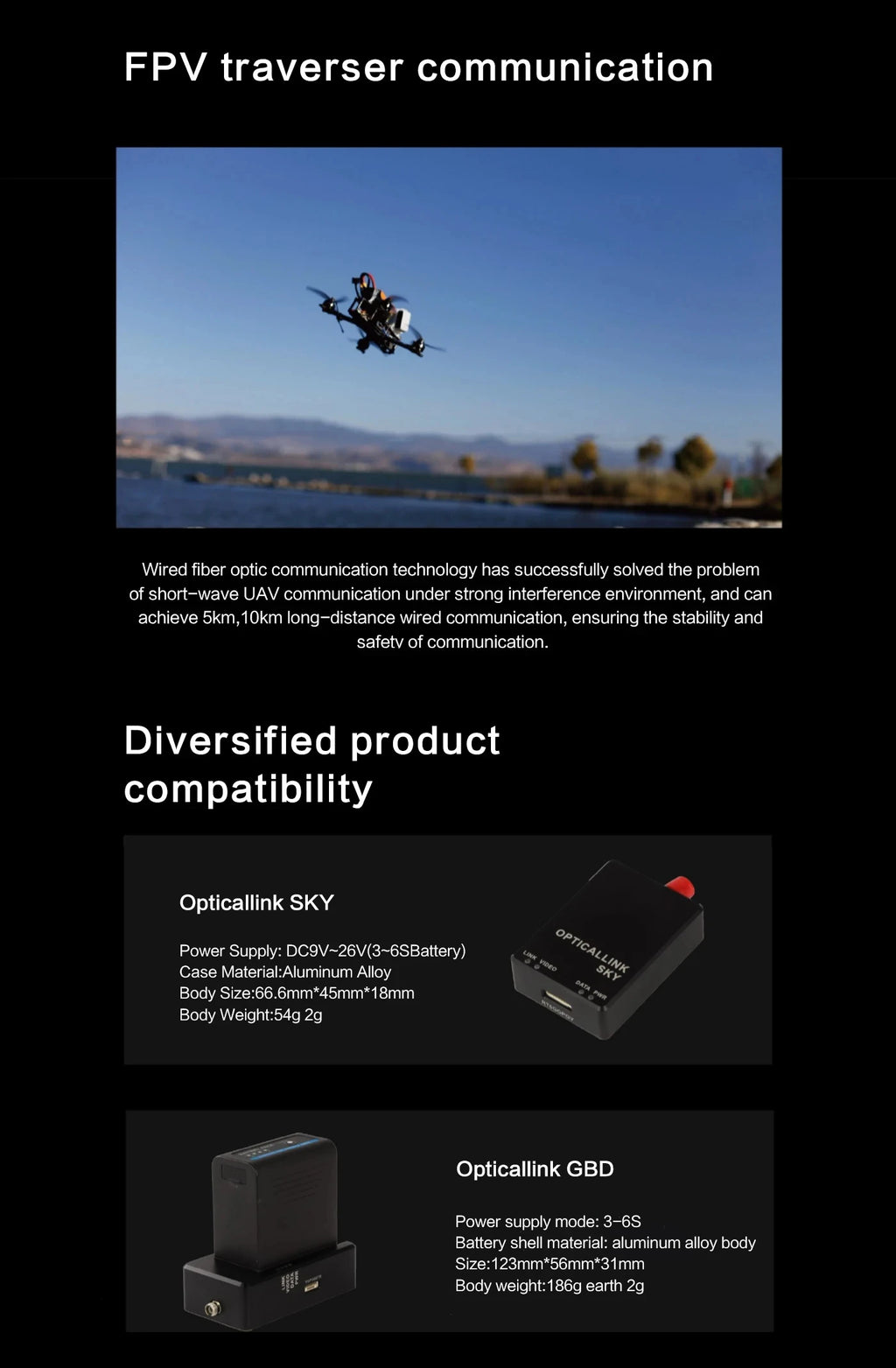

Using fiber optic as the transmission medium, it has fast transmission speed, strong stability, and is not affected by electromagnetic interference. It can support wired signal transmission up to 20Km in length
