Description
SPECIFICATIONS
Brand Name: YUENHOANG
Certification: CE
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: Assemblage
Hign-concerned Chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Composite Material
Model Number: 2KM D0.3mm Light Fiber Optic
Origin: Mainland China
RC Parts & Accs: Fiber Optic
Recommend Age: 14+y
Remote Control Peripherals/Devices: for RC FPV Drone
Size: others
Technical parameters: KV1100
Tool Supplies: Assembled class
Upgrade Parts/Accessories: Ground End Module
Use: Vehicles & Remote Control Toys
Wheelbase: Screws
Specification:
- Item name: rc drone control fiber optic cable
- Item type: light fiber, 0.3mm optical fiber diameter
- Distance: 2KM(If you need 3KM/5KM/10KM/15KM/20KM/25KM/30KM, please contact us)
- Shell material: engineering plastic ABS
Description:
- Both end with connector
- Usually, the connector is FC/UPC, if any other issues PLS contact with our customer service
- The outgoing wire is smooth and the outgoing speed can reach 120km/h
- Adopting bending resistant G657A2 fiber core and adding fiber coating technology, it has better tensile and wear resistance
Specification for transmit module(Sky End) (TX module):
- MCU: FPGA
- Input power: 9-18V
- Interface: UART & Video
- Video protocol: PAL / NTSC
- Control protocol: TTL / ELRS / SBUS
- Max distance: ＞25km
- Optical wavelength: 1310nm / 1550nm
- Size: 60x35mm
- Weight: about 10g

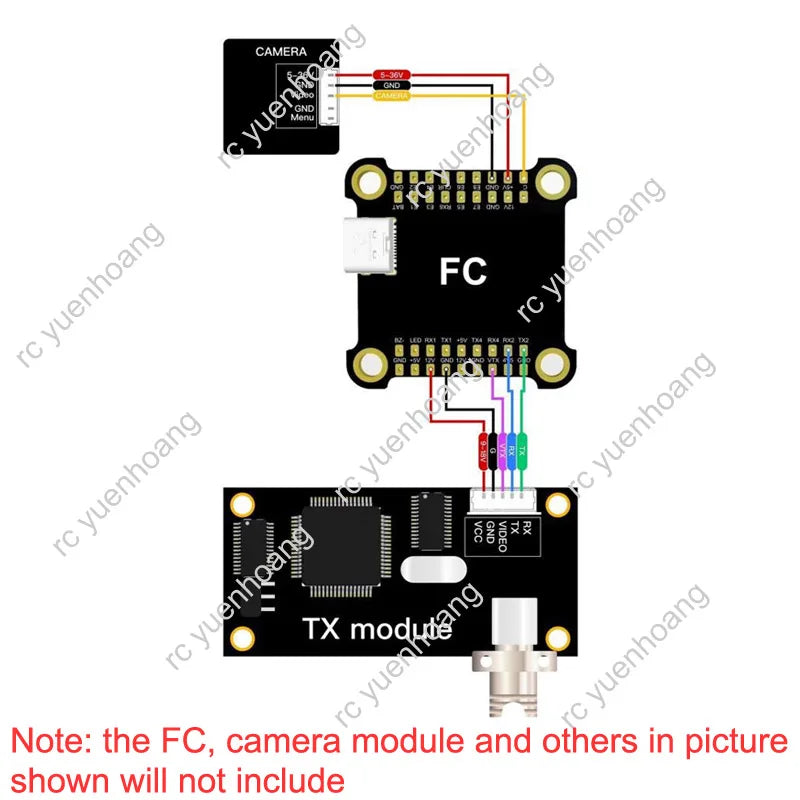

Wire connection for transmit module(Sky End):
- VCC, connect with flight control PCB board 9-18V
- GND, connect with flight control GND (G) channel
- VIDEO, connect with flight control VTX channel
- RX, connect with flight control TX pin
- TX, connect with flight control RX pin
- FC (Optical Interface), connect the optical fiber behind the fiber optic storage box to the FC of the TX module

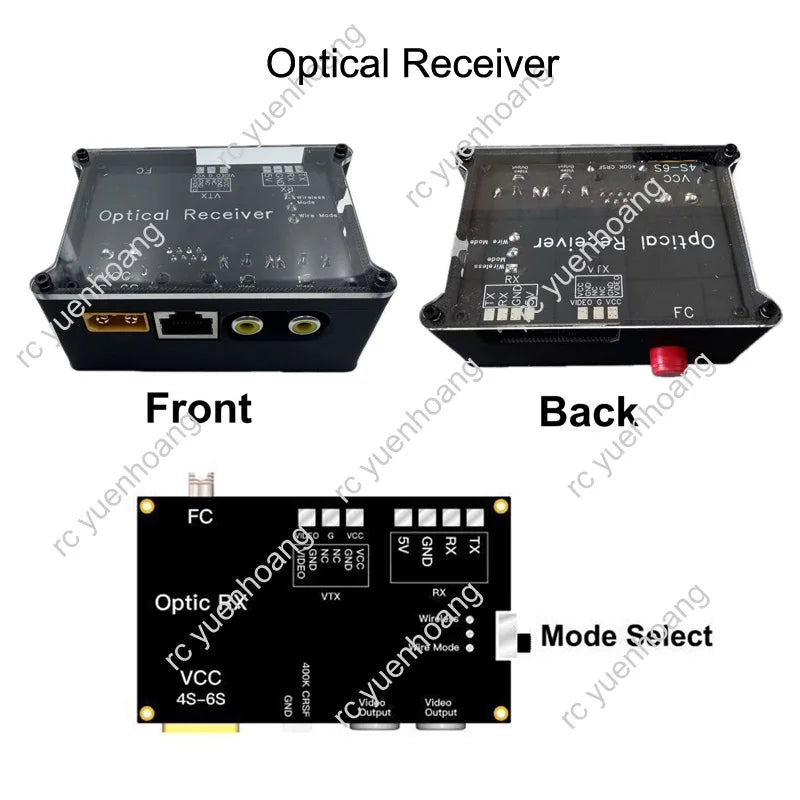

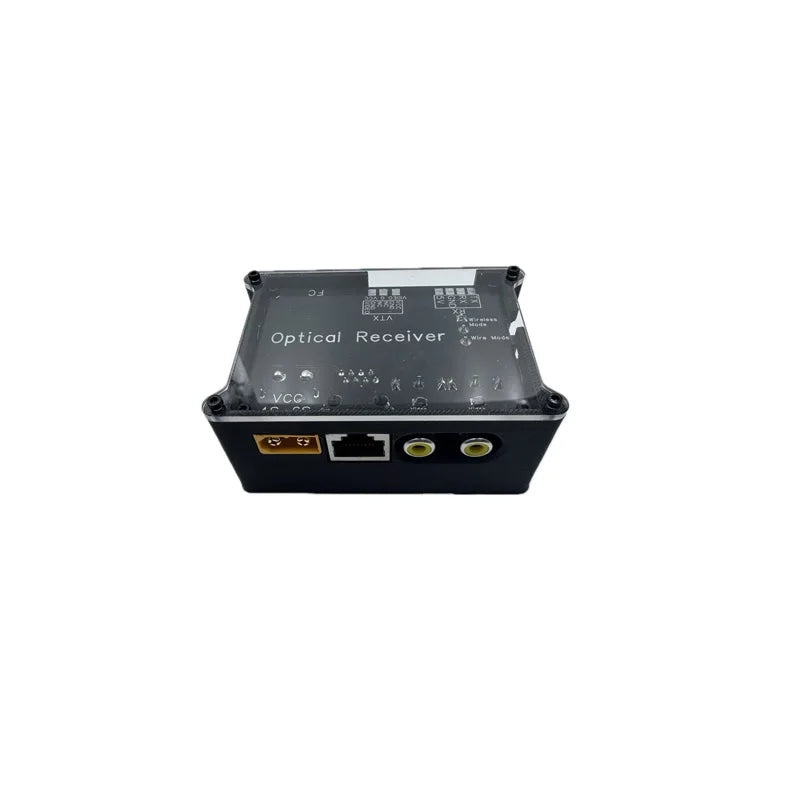

Specification for receiver module(Ground End) (RX module):
- MCU: FPGA
- Input power: 4S-6S with XT60

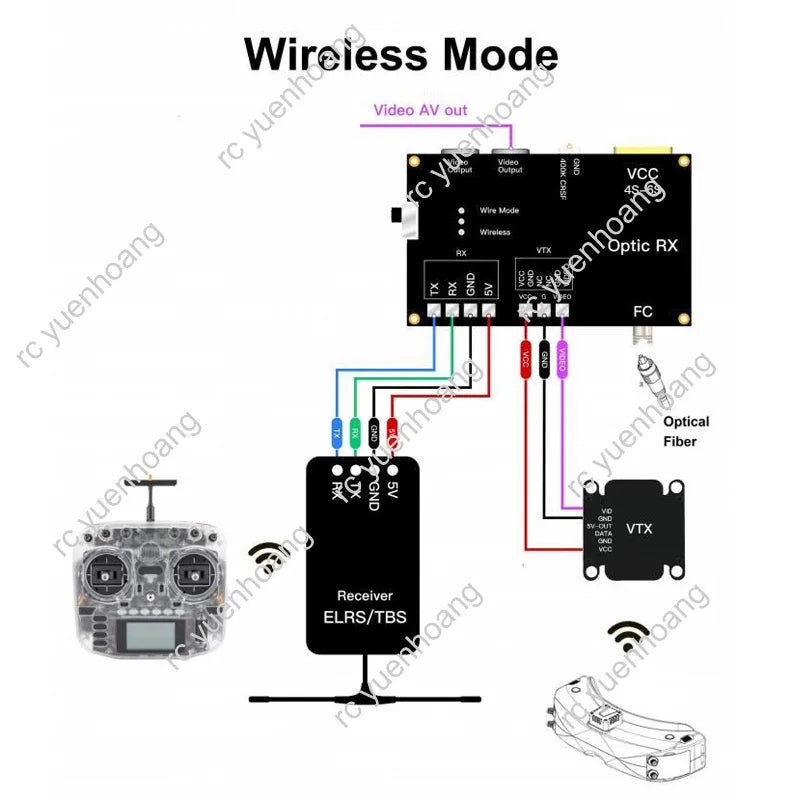

- Interface: UART / Video (RCA and VTX)
- Video protocol: PAL / NTSC
- Control protocol: TTL / ELRS / TBS / CRSF
- Max distance: ＞25km
- Optical wavelength: 1310nm / 1550nm
- Size:72x32x30mm
- Weight: about 20g

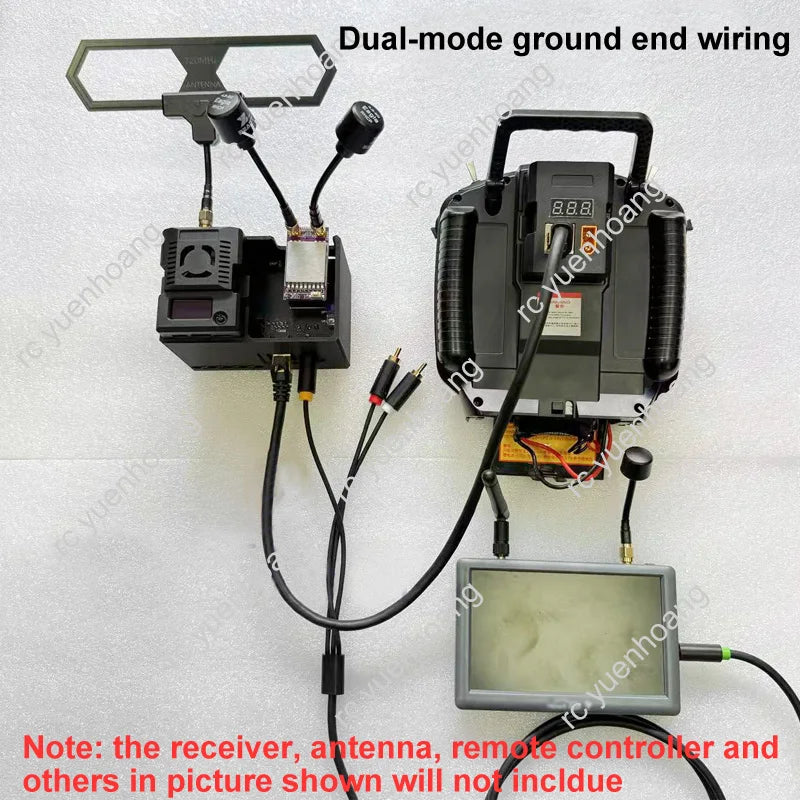

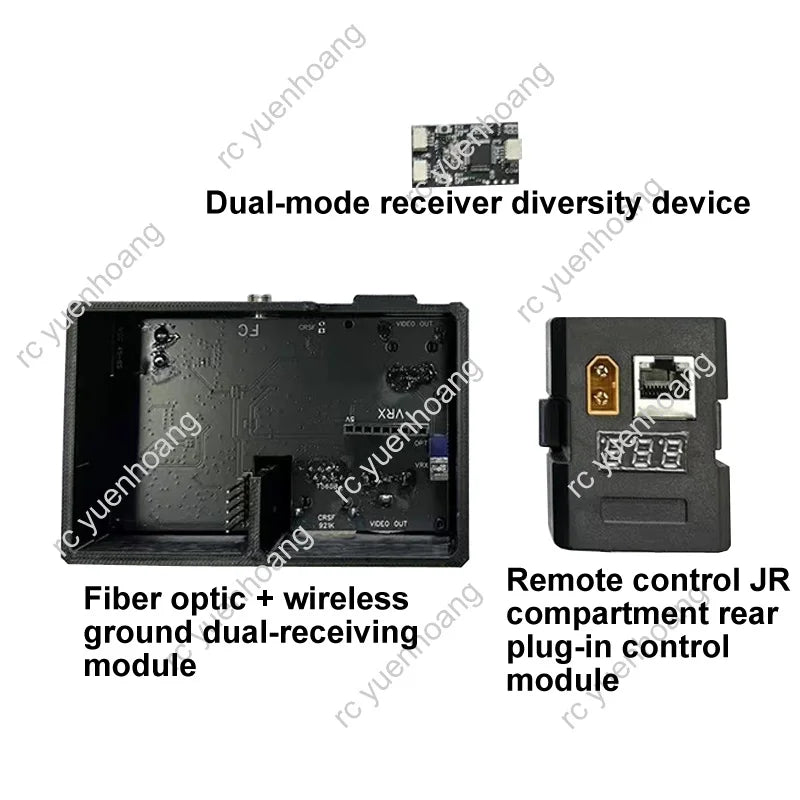

Description for dual-mode ground end:
- Ground end of the fiber optic wired + wireless dual-mode parallel solution.
- Dual-mode parallel transmission of wireless (control + image transmission) and fiber optic (control + image transmission)
- Signal detection of the fiber optic path. When the fiber optic is connected, the LED indicator shows a blue light constantly on. When the fiber optic is disconnected, the LED indicator shows a red light constantly on.
- Seamless and delay-free switching between the two modes, without black screens or screen flickering.
- Redundant design of the two modes provides a double guarantee for flight safety.
3 types for your refer:

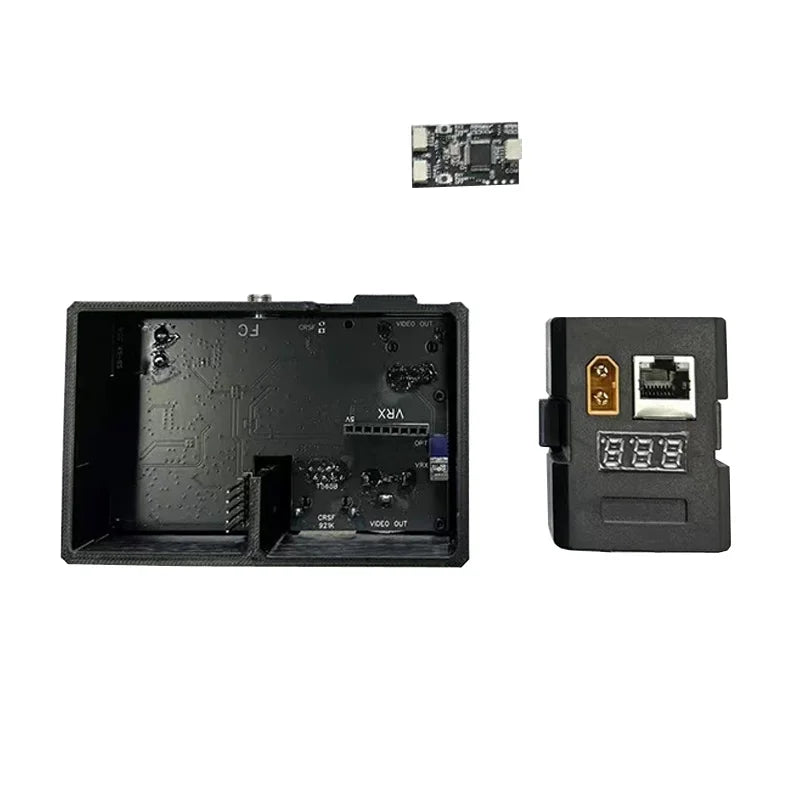

- only ground end receiver module (not including battery), wireless/wired remote control direct connection/2-channel AVI output
- dual-mode ground end (not including battery), fiber optic/wireless dual-mode parallel transmission module
- Light 2KM (about 0.5KM) w sky end transmit module
Note:
- During flight, ensure that the fiber optic outlet is kept away from the propeller.
- Avoid excessive angles when exiting the fiber optic cable, and avoid excessive angles when turning to prevent the fiber optic cable from being cut by the propeller.
- The flight speed needs to be controlled within 120km/h.
- Before flying, please ensure that the fiber optic box fixing buckle is unlocked.
- Please accelerate slowly when taking off to avoid accelerating too quickly throughout the entire flight, otherwise it may cause fiber overload.
- If any other issues PLS contact with our customer service.
- The weight and size marked on the label of the optical fiber box may vary due to different production batches.
- Size is manual measurement, there are exist errors.
- The remote controller, screen, FC and others in picture shown will not include.

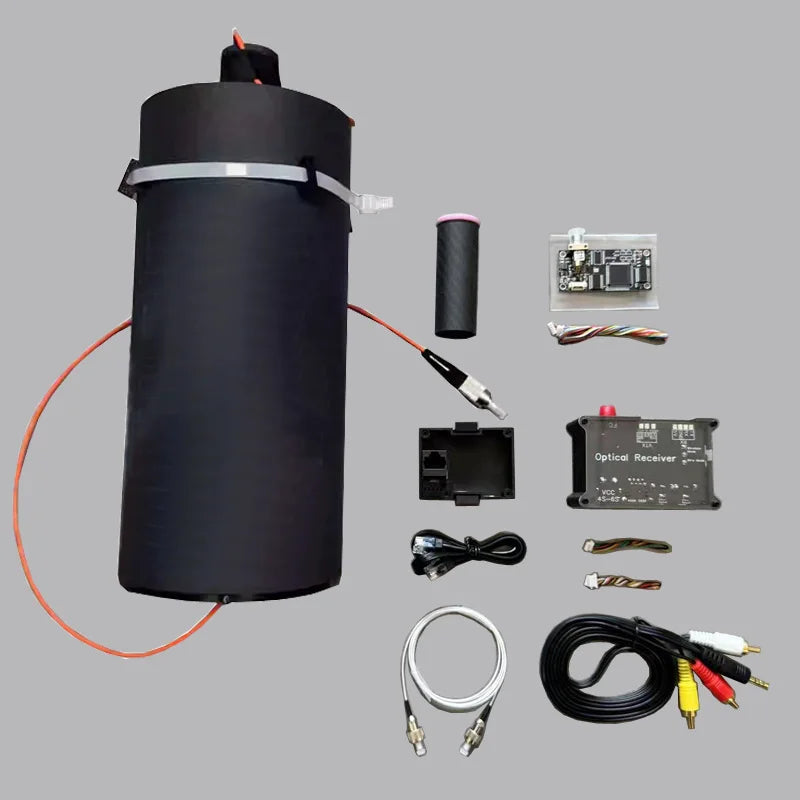

Package included is optional:
1pcs x ground end module
or

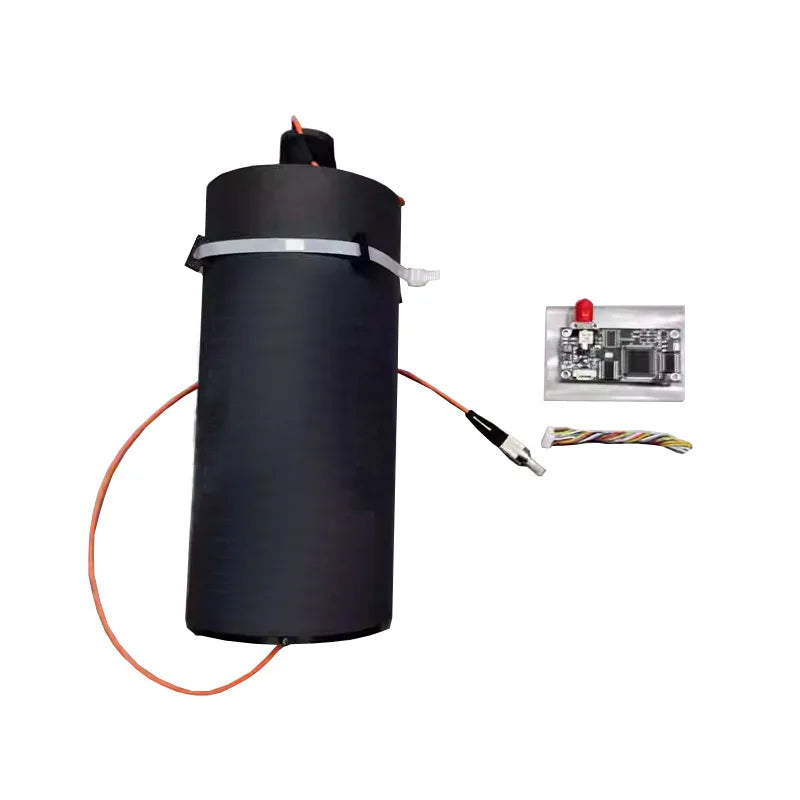

1pcs x optical fiber outlet box, with sky end module
